Mini Loaders

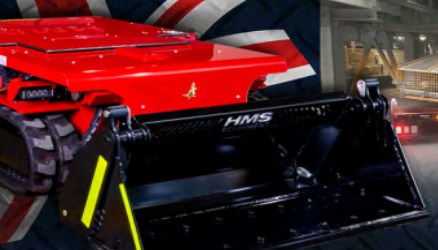

COMPACT HMS 200MINI LOADER

ENGINE
20HP Kubota D902, 3 cylinder, liquid cooled, diesel
FUEL TANK CAPACITY
20 Litres
HYDRAULIC TANK CAPACITY
115 Litres
SYSTEM PRESSURE
240 Bar
DIMENSION
Length: 2660mm (w/bucket) | Height: 625mm | Width: 1320mm
Request price
Download brochure

Description

HMS 200 Compact Mini Loader  is a global award winning
innovation utilising world class technology. The remote controlled
mini loader provides the operator with increased capability,
safety and productivity.

The ultra-low profile allows the mini loader to be used in hard to
access areas such as under conveyor belts without the need for
expensive shutdowns whilst maintaining productivity and safety.

Hetronic Remote Control

Encased in a tough, IP65, fiber enforced polycarbonate case,
the lightweight, ergonomic radio remote control by HMS Equipment, is
rugged and reliable; engineered for the toughest industrial environments.
Offering increased safety, productivity and operational efficiency, the
new mini loader with remote control uses patented User Interface (UI)
technology for optimal control and reliability. New, fully proportional,
electro-hydraulic valves deliver precise and repeatable movement under
all working conditions.

Specifications

ENGINE
20HP Kubota D902, 3 cylinder, liquid cooled, diesel
FUEL TANK CAPACITY
20 Litres
HYDRAULIC TANK CAPACITY
115 Litres
SYSTEM PRESSURE
240 Bar
DIMENSION
Length: 2660mm (w/bucket) | Height: 625mm | Width: 1320mm
GROUND CLEARANCE
74mm
SPEED
Low speed: 2.5kph | High speed: 5kph
WEIGHT
1720kg
BUCKET CAPACITY
Vol: 0.155m3 | Mass: 375kg
FREQUENCY RANGE
434MHz
RF POWER
10 mW standard
MODULATION
FM – Narrow band
BANDWIDTH
25kHz
TYPICAL RANGE
100m standard, 200m with optional antenna
TEMPERATURE RANGE
-25°C – 70°C
HUMIDITY RANGE
0 – 97%
RESPONSE TIME
Approx. 55ms
TRANSMITTER
IP65, built-in antenna, 12hrs continuous operation, spring return joystick
RECEIVER
IP65
BATTERY & CHARGER
Charger Power: 9 – 30 VDC, 110/220 VAC
Charging Time: Battery Type: NiMh | Battery Capacity: 1200mAH
CERTIFICATES
RCM, CE, TUV, SUVA, ISO 9001 & compliance with AS/NZS 4240.1:2009
