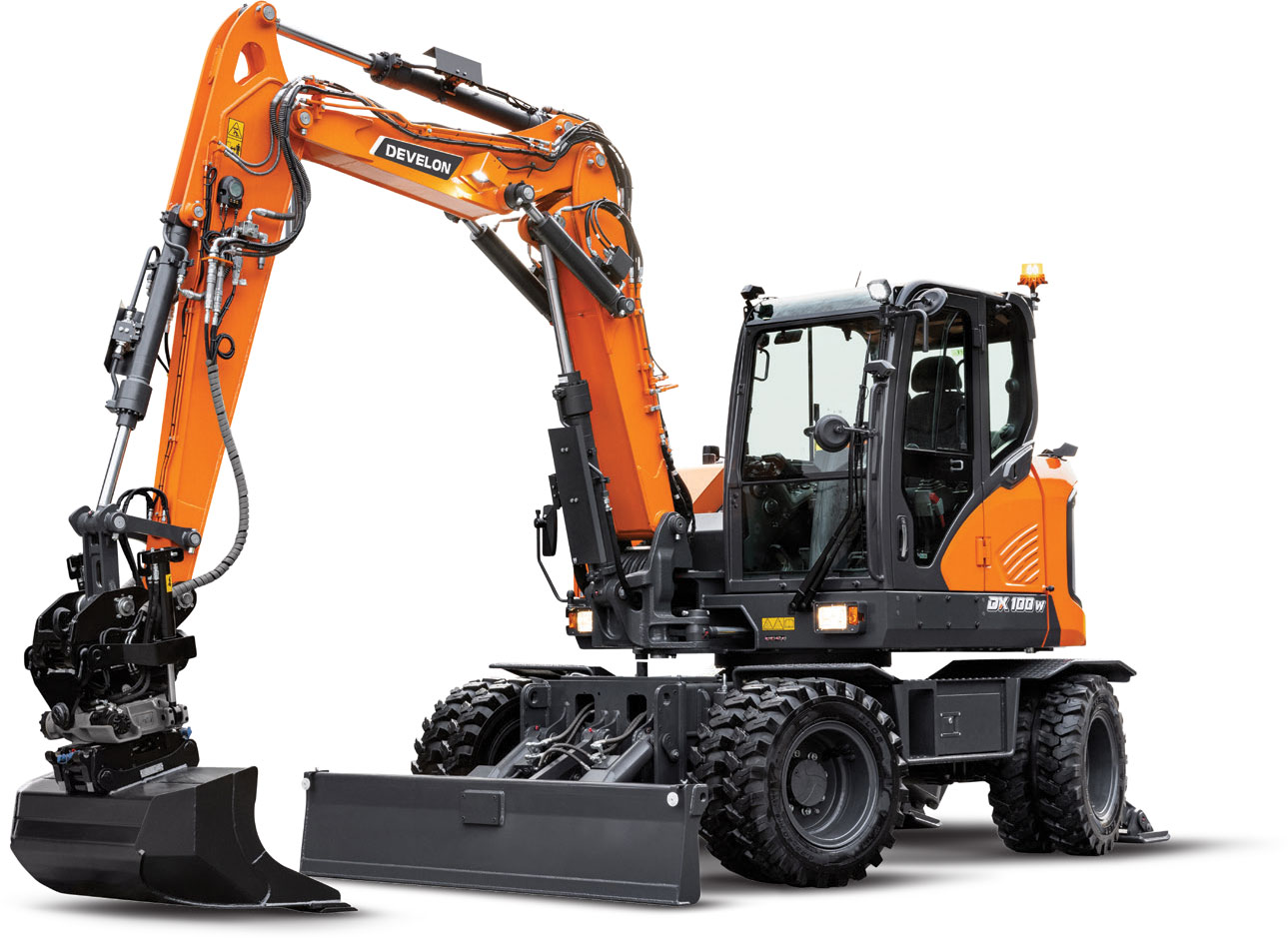

Mini Wheel Excavator

DX100W-7

Make
DEVELON
Model
D34
Number of cylinders
4
Rated power, gross (hp per SAE J1995)
100.6 hp (75 kW) @ 2000 rpm
Rated power, net (hp per SAE J1349)
100.6 hp (75 kW) @ 2000 rpm
Request price
Download brochure

Description

Specifications

Make
DEVELON
Model
D34
Number of cylinders
4
Rated power, gross (hp per SAE J1995)
100.6 hp (75 kW) @ 2000 rpm
Rated power, net (hp per SAE J1349)
100.6 hp (75 kW) @ 2000 rpm
Max. torque, net (SAE J1995)
316.8 lbf.·ft. (43.8 kgf·m) @ 1400 rpm
Displacement
208 in.3 (3409 cm3)
Bore and stroke
3.86 in. x 4.45 in. (98 mm x 113 mm)
Starter
12 V, 4.43 hp (3.3 kW)
Battery
12 V, 150 AH
Alternator
12 V, 140 amp
Air cleaner
Double elements
Main pumps
1 x 50 gpm (200 L/min.)
Pilot pump (gear design)
6.1 gpm (23.2 L/min.)
Relief pressure
4409 psi (301 kg/cm2)
Max. displacement
484.8 gpm (56 cc/rev) @ 2000 rpm
Rated flow rate
29.6 gpm (112 L/min.) @ 2000 rpm
Pressure cut-off
6116 psi (430 kg/cm2)
Boom/arm/bucket (normal mode)
4068 psi (286 kg/cm2)
Swing (crossover relief)
3115 psi (219 kg/cm2)
