Mini Excavators

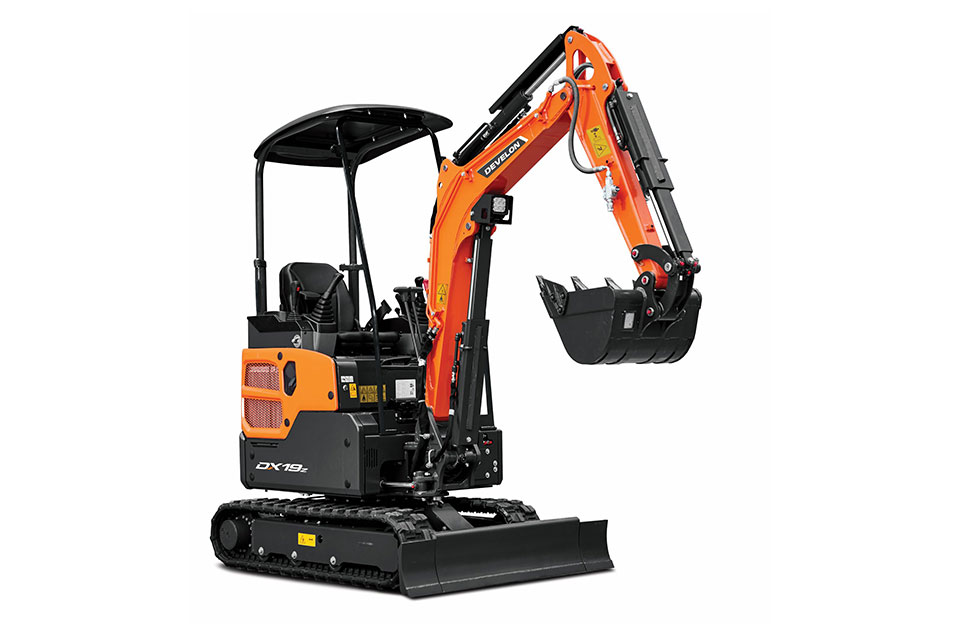

DX19Z-7B

Model
Yanmar 3TNV70
Rated power (Gross)
10.3 kW (14 ps) @ 2,200 rpm
Max. torque
51.3 N.m @ 1,600 rpm
Displacement
0.854 L
Request price
Download brochure

Description

INCOMPARABLE PERFORMANCE
- Outstanding travel performance
- Independent 3-pump hydraulic system
making complicated work easy.

ENHANCED CONVENIENCE
- Front Footrest
- Emergency Engine Stop Button
- Detachable Canopy
- Cylinder Guard
- LED Light
- Battery Box - Easy Access
- Extra Operator Comfort

NEW FEATURES
- Variable Track Width
- Boom Swing Function
- Well-Balanced Work Range
- Compartment For Storage
- Ascending Degree Of Dozer Blade

Specifications

Model
Yanmar 3TNV70
Rated power (Gross)
10.3 kW (14 ps) @ 2,200 rpm
Max. torque
51.3 N.m @ 1,600 rpm
Displacement
0.854 L
Operating weight
1,995 kg (with operator 75kg)
Bucket capacity
0.05 m3
Swing Speed
9.6 rpm
Travel Speed (Low/High)
2.0/3.7 km/h
Gradeability
58 % (30 deg)
Ground Pressure
0.30 kg/cm2
Maim pump type
Variable displacement piston pump x 2 +gear pump x 1
Main pump Maximum flow
2 x 17.6 L/min + 13.2 L/min
Hydraulic circuit of the working unit
210 kgf/cm2
Hydraulic travel circuit
210 kgf/cm2
Hydraulic rotary circuit
166 kgf/cm2
Fuel Tank
20 L
Hydrualic oil tank
20 L
