Mini Excavators

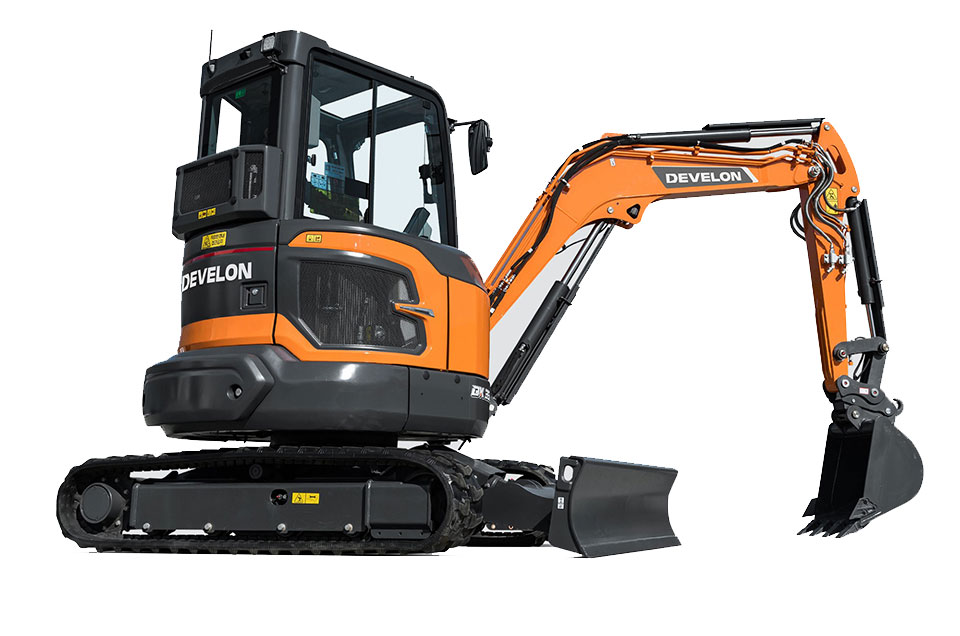

DX35Z-7M

Model
Develon DN1.7
Rated Power
18.4 / 2,200
Max. Torque
9.9 / 1,600
Bucket Capacity
0.11
Request price
Download brochure

Description

PERFORMANCE

• Strong lifting and digging force
• Excellent travel performance
• Outstanding controllability reflecting
customer needs
• Standard application of rotating piping
• Automatic traveling shift function applied
when driving

NEW FEATURES

• New design
• Optional cabin / canopy specifications
• Zero - tail swing radius
• The boom swing function allows
you to work in very narrow areas
• Boom / Arm / Bucket cylinder guard
• Canopy with tip-over protective structure (TOPS)
• Cabin with roll-over protective structure (ROPS

CONVENIENCE AND MAINTENANCE

• Removable canopy ( Canopy type )
• Front footrest in the cab ( Canopy type )
• 12V power socket
• Large storage space
• Wrist rest
• Heater
• Thumb wheel joystick

DELUXE INTERIOR FOR CABIN

• Powerful air conditioner ( Optional )
• Heating and cooling seat ( Optional )
• Rear view camera ( Optional )
• USB charging
• 5.7-inch LCD gauge panel ( Optional )
• Bluetooth audio ( Optional )
• DEVELON Fleet Management
• Cabin with roll-over protective
structure ( ROPS )
• Full glass door

Specifications

Operating Weight (Canopy)
3,845 kg
Operating Weight (Cabin)
3,995 kg
Engine Model
Develop DN1.7
Engine Rated Power
18.4 / 2,200 rpm
Engine Max. torque
9.9 / 1,600 rpm
Hydraulic System pressure
250 kgf/cm2
Hydraulic Max. flow
2 X 37.0 + 20.7
Travel speed (High / Low)
4.4 / 2.6 km/h
Swing speed
8.7 rpm
Digging force (Bucket / Arm)
3.17 / 2.08 ton
Gradeability
35 degree
Overall length (A)
4,760 mm
Undercarriage width (Canopy) (B)
1,550 mm
Undercarriage width (Cabin) (B)
1,700 mm
Overall height (C)
2,479 mm
Tail swing radius (Canopy) (D)
945 mm
Tail swing radius (Cabin) (D)
875 mm
Min. swing radius (E)
2,115 mm
Track height (F)
476 mm
Track length (K)
2,121 mm
Boom length
2,535 mm
Arm length
1,330 mm
Max. digging height (G)
5,095 mm
Max. loading height (H)
3,580 mm
Max. digging depth (I)
3,275 mm
Max. digging reach (J)
5,355 mm
Boom swing angle (left / right)
66.5 / 53.5
Dozer blade (width x height)
1,700 x 380
Shoe width
300 mm
Ground pressure (canopy)
0.35 kgf/cm2
Ground pressure (cabin)
0.34 kgf/cm2
