Mini Excavators

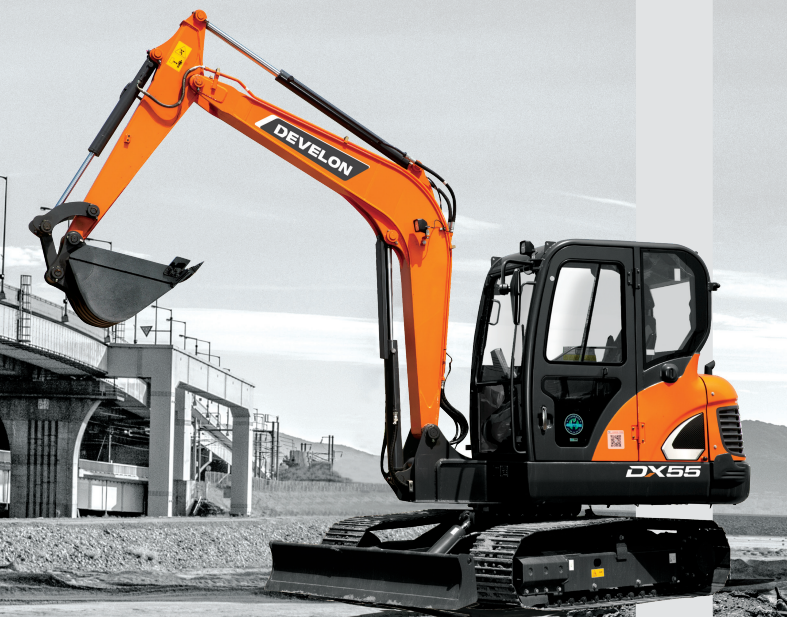

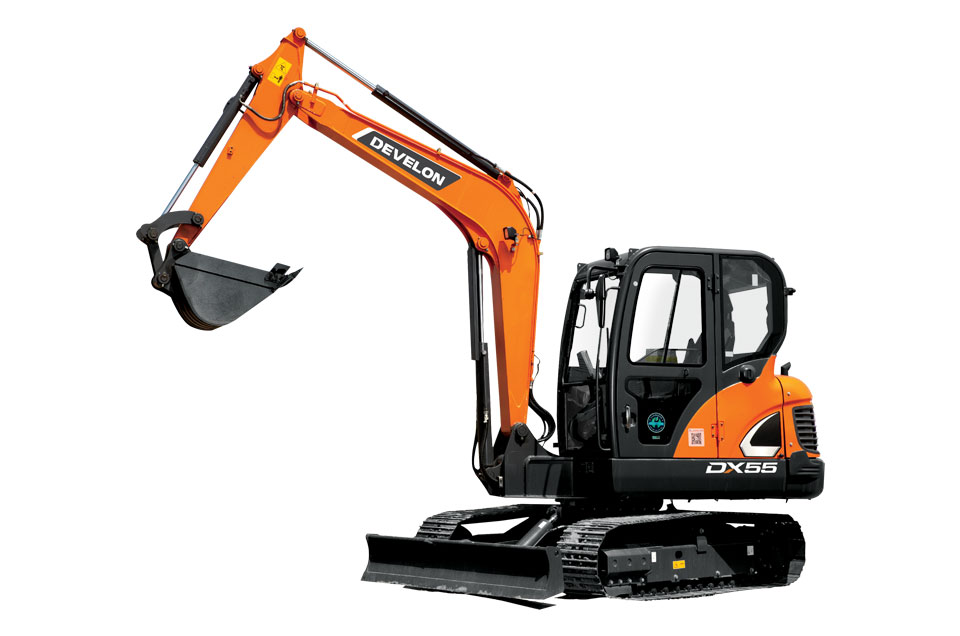

DX55-5C

Model
4TNV94L
Rated power
36.2 kW/2,100 rpm
Maximum swing speed
9.8 rpm
Operating weigh
5.4 ton
Bucket
0.21 m3
Request price
Download brochure

Description

INCREASED PRODUCTIVITY AND IMPROVED FUEL ECONOMY

are attributed to the electronic optimization of the hydraulic system and the new generation engine.

IMPROVED ERGONOMICS

increases comfort and excellent all around visibility ensuring a safe and pleasant working environment.

IMPROVED RELIABILITY

is achieved through the use of high performance materials combined with new methods of structural stress analysis, which leads to increased component life expectancy, thus reducing operating costs.

REDUCED MAINTENANCE

increases the availability and reduces operating costs of the excavator.

Specifications

Model
4TNV94L
Rated power
36.2 kW/2,100 rpm
Boom
3,000 mm
Arm
1,600 mm
Bucket
0.21 m3
Shoe width
380 mm
Operating weight
5.4 to
Maximum swing speed
9.8 rpm
Travel speed (low-high)
4.6 / 2.9 km/h
Bucket
3.9 ton
Arm
2.8 ton
Fuel tank
100 L
Hydraulic oil tank
62 L
Tail swing radius
1,650 mm
Shipping height (boom)
1,920 mm
Shipping height (hose
1,920 mm
Shipping length
5,870 mm
Counterweight clearance
700 mm
Tumbler distance
1,990 mm
Track length
2,540 mm
Upperstructure width
1,870 mm
Cab height above bonnet
1,265 mm
Cab width
1,095 mm
Height over cab
2,590 mm
Undercarridge width
1,860 mm
Shoe width
380 mm
Track height
615 mm
Ground clearance
260 mm
Max. digging reach
6,135 mm
Max. digging reach (ground)
6,025 mm
