Mini Excavators

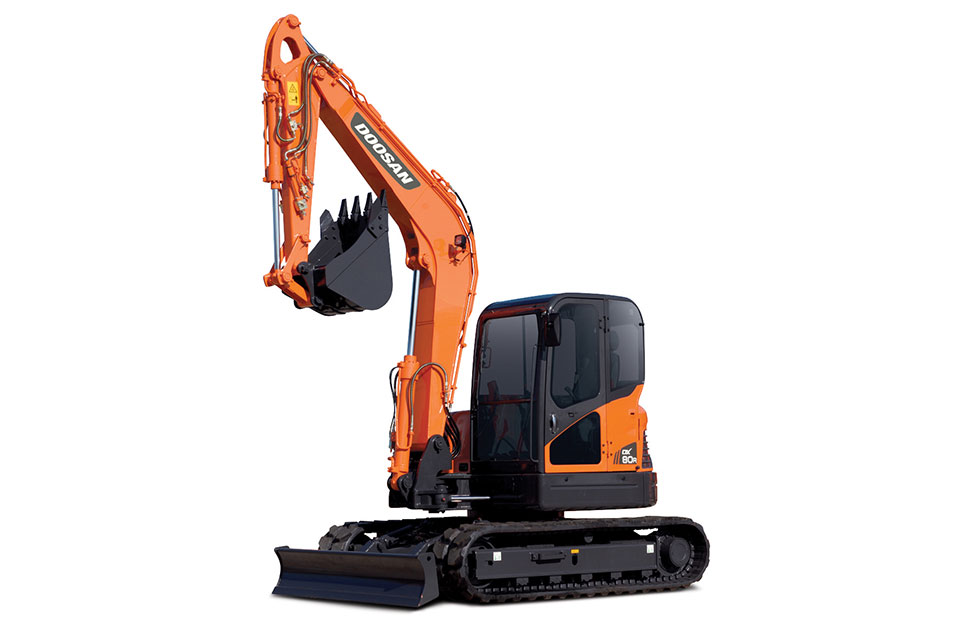

DX80R

Model
4TNV98
Number of cylinders
4
Max torque
23.17~25.24 kg.m / 1,300 +/- 100 rpm
Piston displacement
3,319 cc (202.5 cu.in)
Bore & stroke
∅ 98 mm x 110 mm
Request price
Download brochure

Description

NEW FEATURES

The new DX80R hydraulic excavator has all the advantages of the previous model, and now offers additional added value to the operator. The new DX80R was developed with the concept of “providing optimum value to the end user.” In concrete terms, this translates, into : Increased production and improved fuel economy due to the electronic optimization of the hydraulic system and the new generation engine.

Improved ergonomics which increase operator comfort, along with excellent all around visibility ensure a safe and pleasant working environment. Improved reliability through the use of high performance materials combined with new methods of structural analysis, thus reducing operating costs. Reduced maintenance increases machine availability and reduces operating costs of the excavator.

COMFORT

This standard-duty machine, offers a spacious operators cabin which is normally only found in medium and heavy-duty machines. The working controls in the cabin are ergonomically designed to ensure operator convenience and comfort

PERFORMANCE

DX80R ensures best performance with a powerful excavating force and a high-tech hydraulic system for better operating efficiency at any work site! Excellent performance is its basic feature!



Specifications

Model
4TNV98
Number of cylinders
4
Nominal flywheel power
39.9 kW (53.4 HP) @ 2,000 rpm (SAE J1349 net, Tropical) 40.4 kW (54.6 HP) @ 2,000 rpm (SAE J1349 net, Global)
Max torque
23.17~25.24 kg.m / 1,300 +/- 100 rpm
Piston displacement
3,319 cc (202.5 cu.in
Bore & stroke
∅ 98 mm x 110 mm
Starter
212 V x 3.0 kW
Batteries
1 x 12 V / 100 AH
Alternator
12 V / 60 AH
Main pumps
Variable displacement axial piston pump Max flow: 144 ℓ/min (38 US gpm, 31.7 lmp gpm)
Pilot pump
Gear pump -max flow: 22 ℓ/min (5.81 US gpm, 4.84 lmp gpm)
Maximum system pressure
285 kg/cm2
Swing speed
9.6 rpm
Rear swing radius
1300 mm
LwA External noise (Guaranteed Sound Power Level)
98 dB (A) (2000/14/EC)
LpA Operator noise
74 dB (A) (ISO 6396)
Arm Length
1,700 mm rubber / 1,700 mm steel
Operating Weight
8,330 kg
Ground Pressure
0.39kgf/cm2 (38 kpa, 5.5 psi) / 0.39kgf/cm2 (38 kpa, 5.5 psi)
LwA External sound level
98 dB
Maximum traction force
6.2 / 3.6 ton
Maximum grade
30° / 70%
Fuel tank
110 ℓ
Cooling system (Radiator capacity)
10 ℓ
Engine oil
11.6 ℓ
Final drive (each)
1.2 ℓ
Hydraulic system
127 ℓ
Hydraulic tank
87 ℓ
