Mini Excavators

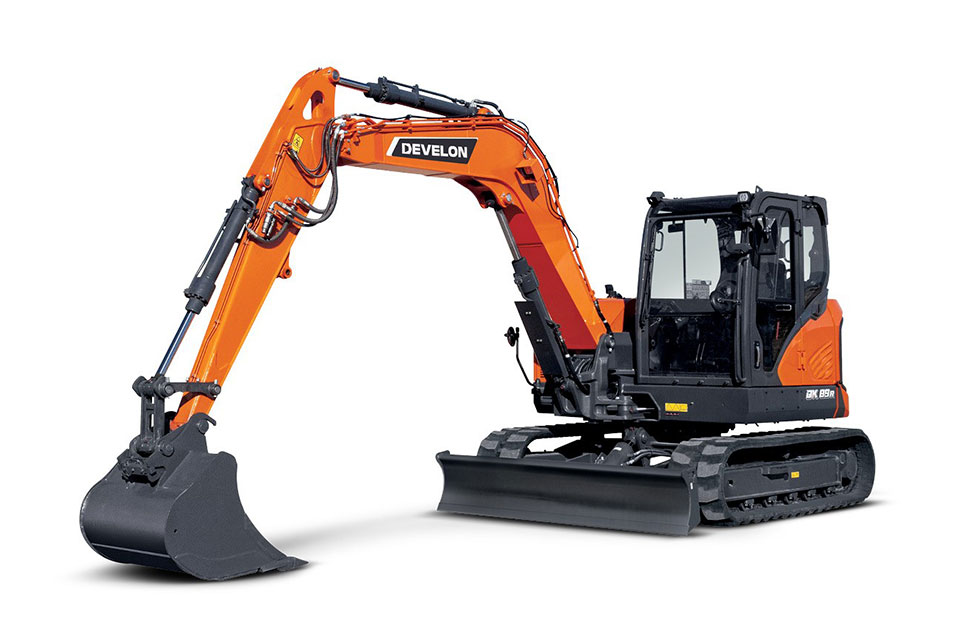

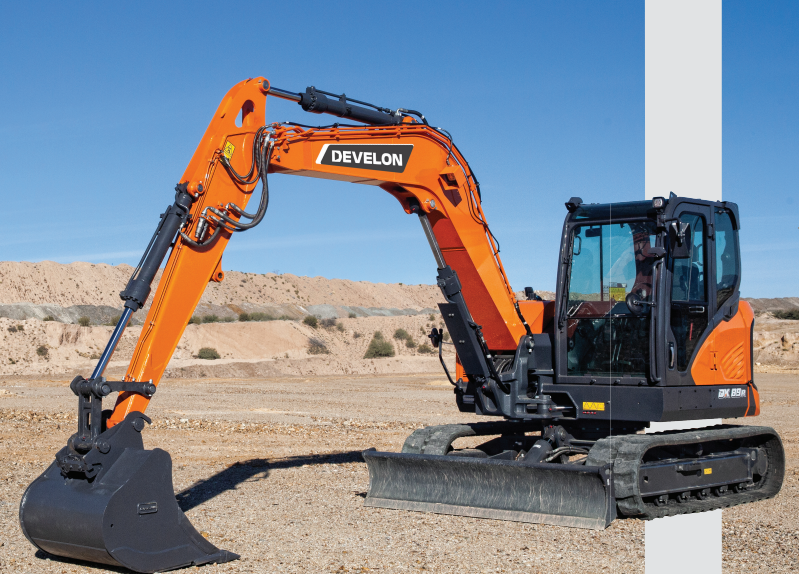

DX89R-7

Model
Develon D24
No. of cylinders
4
Rated power at 2100 rpm
ISO 8178 48.5 kW (65 hp)
Max. torque at 1600 rpm
280 Nm
Idle (low - high)
1000 - 2100 rpm
Request price
Download brochure

Description

RELIABILITY

Reinforced castings and forged steel pivot points, and reinforced heavy-duty arm and boom to withstand high-impact materials. Mono boom or articulated boom for added versatility. Improved hydraulic line routing to protect your investment.

EFFICIENCY

The auto idle function, applied as standard, increases fuel efficiency and reduces noise level.

PRODUCTIVITY

State-of-the-art bucket, arm digging and pulling forces deliver higher productivity and reduced fuel consumption in an efficient and comfortable work environment.

TOP PERFORMANCE IN A VERSATILE PACKAGE

  • A compact & powerful machine for the best adaptability to any work site.
  • High tractive effort and strong swing torque offer excellent capability for working on slopes.
  • Large hydraulic capacity of a tool carrier.
  • Works in narrow spaces thanks to boom swing and articulation

CONTROLLABILITY

  • Smooth and precise hydraulics drive all attachments needed on the job site.
  • Operator can control flow rate proportionally. 2 Travel speeds with automatic auto shift.
  • Boom swing, controlled from the joystick, ensures powerful and stable performance.
  • Easy to read and use, the new Develon Smart Touch 8" touch screen integrates all functions and settings of your machine in one place.
  • Don't miss any important call, thanks to the hands-free phone system.

Specifications

Model
Develon D24
No. of cylinders
4
Rated power at 2100 rpm
ISO 8178 48.5 kW (65 hp)
Max. torque at 1600 rpm
280 Nm
Idle (low - high)
1000 - 2100 rpm
Displacement
2.4 l
Bore × stroke
90 mm × 94 mm
Starter
12 V / 2.5 kW
Batteries - Alternator
1 × 12 V, 100 AH – 13.5 V, 90 A
Air filter
Double element air cleaner
Main pump
Tandem axial piston pump (load sensing)
Maximum flow at 2100 rpm 149 l/min
Relief valve settings
Implement 285 kgf/cm²
Travel 300 kgf/cm²
Swing 214 kgf/cm²
Upper rollers (standard shoe)
1
Lower rollers
5
Number of links & shoes per side
40
Link pitch
154 mm
A-weighted emission sound pressure level at the operator’s position, LpAd (ISO 6396:2008)
Guranteed : 75 dB(A)
Measured : 74 dB(A)
A-weighted sound power level, LwAd (2000/14/EC)
Guranteed : 99 dB(A)
Measured : 98 dB(A)
Fuel tank
160 l
Cooling system (radiator
10 l
Hydraulic oil tank
140 l
Engine oil
8.6 l
Travel device
2 × 1.6 l
Maximum swing speed
9.9 rpm
Maximum swing torque
1954 kgf·m
Travel speed (low - high
2.7 - 4.7 km/h
Maximum traction
6.6 t
Maximum gradeability
35° / 58%
Boom cylinder
109 kg
Arm cylinder
77 kg
