SPYDER MINI LOADER A4v2

ENGINE
20HP Kubota D902, diesel
FUEL TANK CAPACITY
20 Litres
HYDRAULIC TANK CAPACITY
90 Litres
SYSTEM PRESSURE
240 Bar
DIMENSION
Length: 2750mm (w/bucket) | Height: 1412mm | Width: 1065mm
Request price
Download brochure

Description

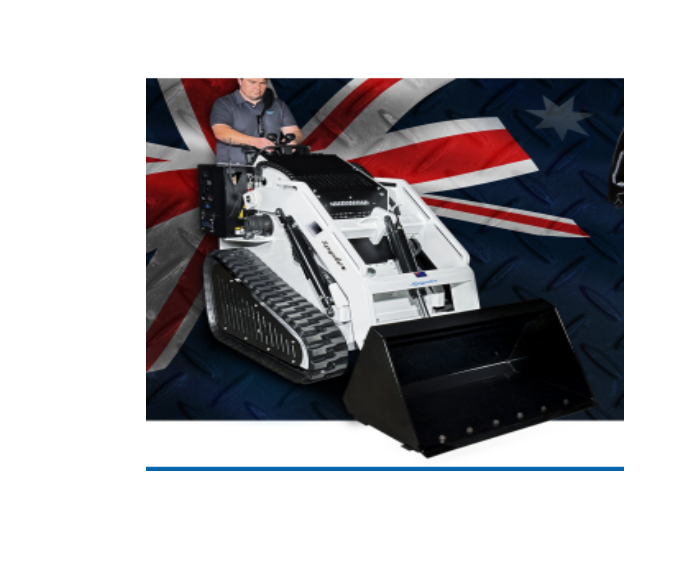

Introducing the innovative Spyder Mini Loader, proudly presented by 360 Machinery to the global market. This Australian-made machine is engineered for exceptional performance, safety, productivity and adaptability.

Equipped with state-of-the-art technology, the Spyder features both full radio remote control and manual control options, providing operators with flexibility. Crafted with precision and using high quality materials from local suppliers, it offers a comprehensive array of attachments each featuring a quick coupling plate and hydraulic quick connects for swift and efficient attachment changes – making it an unmatchable choice for a wide range of applications.

Whether it’s navigating a construction site or working in challenging terrains, the Spyder Mini Loader can travel and work where other machines cannot and stands out as a versatile and reliable solution.

Specifications

ENGINE
20HP Kubota D902, diesel
FUEL TANK CAPACITY
20 Litres
HYDRAULIC TANK CAPACITY
90 Litres
SYSTEM PRESSURE
240 Bar
DIMENSION
Length: 2750mm (w/bucket) | Height: 1412mm | Width: 1065mm
GROUND CLEARANCE
160mm
SPEED
5kph
WEIGHT
1200kg
LIFT CAPACITY
600kg
ATTACHMENTS
Available attachments: 4-in-1 bucket, forks, broom, fines puller, cement mixer, trencher and many more.
FREQUENCY RANGE
434MHz
TYPICAL RANGE
100m with optional 200m
TEMPERATURE RANGE
-25°C – 70°C
TRANSMITTER
IP65
RECEIVER
IP65
CERTIFICATES
RCM, CE, TUV, SUVA, ISO 9001 & compliance with AS/NZS 4240.1:2009 if require
